HeroFrameless Glass Balustrade
Unobstructed Views. Uncompromised Safety.
- 10 mm or 12 mm toughened (tempered) glass to EN 12150 / AS/NZS 2208
- Frameless or semi-frameless: choice of spigot post, channel base, or patch fitting
- Grade 316 stainless steel hardware for coastal and high-humidity environments
- Glass panels laminated (PVB interlayer) available for pools and elevated walkways
- Handles wind loads to AS 1170.2 and BS EN 1991-1-4 on request
- Compatible with our spiral, floating, and curved staircase ranges
Overview
Our frameless glass balustrade systems replace traditional metal infill panels with 10 mm or 12 mm toughened safety glass, maintaining full view-through while meeting guard height and load requirements of IBC, BS 6180, and AS 1170.1.
Technical Specifications
| Specification | Value | ||
|---|---|---|---|
| Glass Type | Toughened (tempered) to EN 12150 / AS/NZS 2208; laminated option | ||
| Glass Thickness | 10 mm standard; 12 mm for commercial or wind-exposed installations | ||
| Glass Height | 900 mm / 1,000 mm / 1,100 mm (custom to local code) | ||
| Post Type | Spigot post (floor-fix) / Channel base (floor or fascia-fix) / Standoff | ||
| Post Material | SUS 316 stainless steel (standard); SUS 304 (interior only) | ||
| Post Spacing | 800 mm – 1,200 mm centre-to-centre | ||
| Handrail Options | Round 50 mm Ø / Square 40×40 / Flat bar 50×10 / No top rail (pool) | ||
| Base Fitting | Wet-fix epoxy or mechanical bolt (expansion or chemical anchor) | ||
| Finish | Mirror polish / Brushed #4 / Matte blast | ||
| Wind Load Rating | Up to W50N (AS 1170.2) — specify site postcode for schedule | ||
| MOQ | 5 linear metres | ||
| Lead Time | 2–3 weeks (glass cut-to-size) | ||
Available Configurations

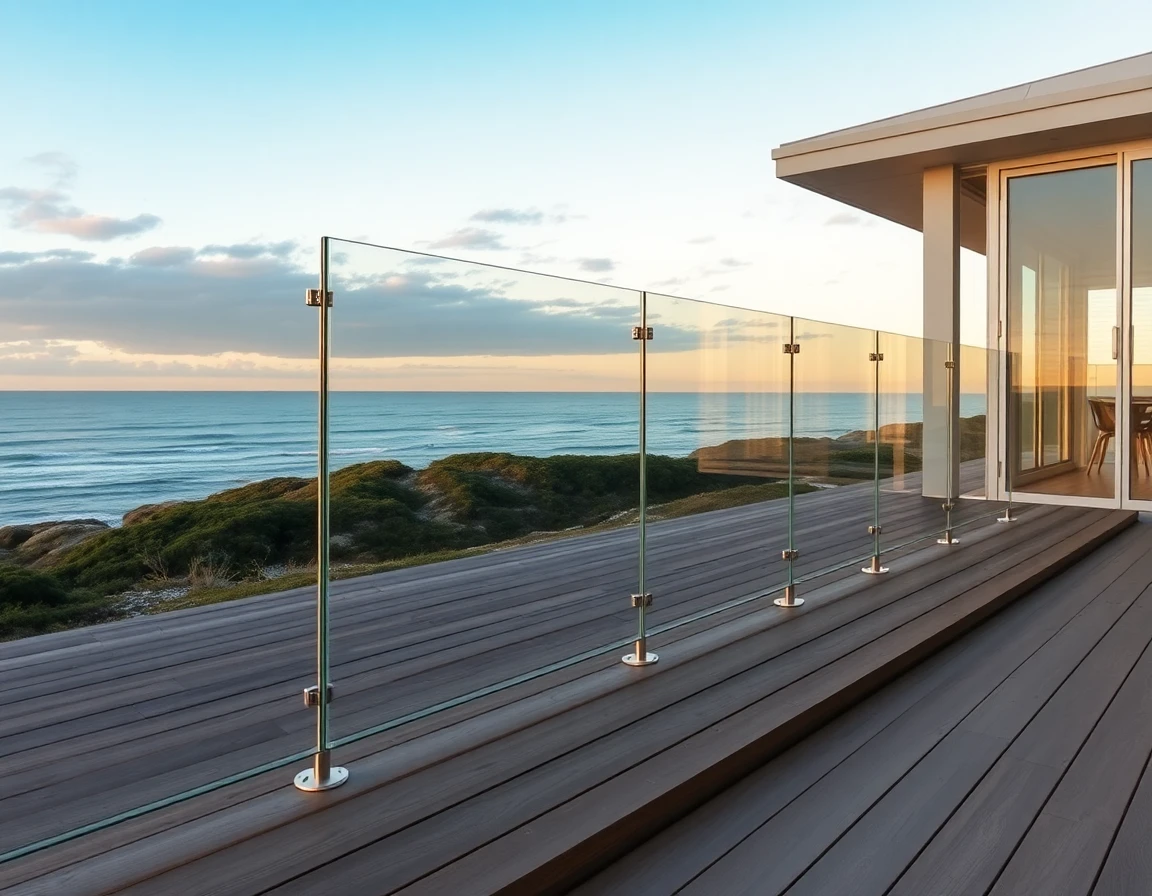

Spigot Post System
Individual stainless steel spigot posts core-drilled into slab or fascia. Most popular for deck and balcony applications.
Channel Base System
Continuous stainless U-channel surface-mounted to floor or fascia. Maximally clean aesthetic — no visible post hardware.
Structural Glass Post System
Load-bearing glass fins (15 mm toughened) replace metal posts entirely. Used in high-end retail and architectural showcase projects.
Frequently Asked Questions
What is the difference between toughened and laminated glass for balustrades?
Are your glass balustrades suitable for coastal saltwater environments?
Can you supply glass balustrades for swimming pool fencing?
How is the glass ordered?
Typical Applications
- ▸Staircase balustrade (indoor, paired with any staircase type)

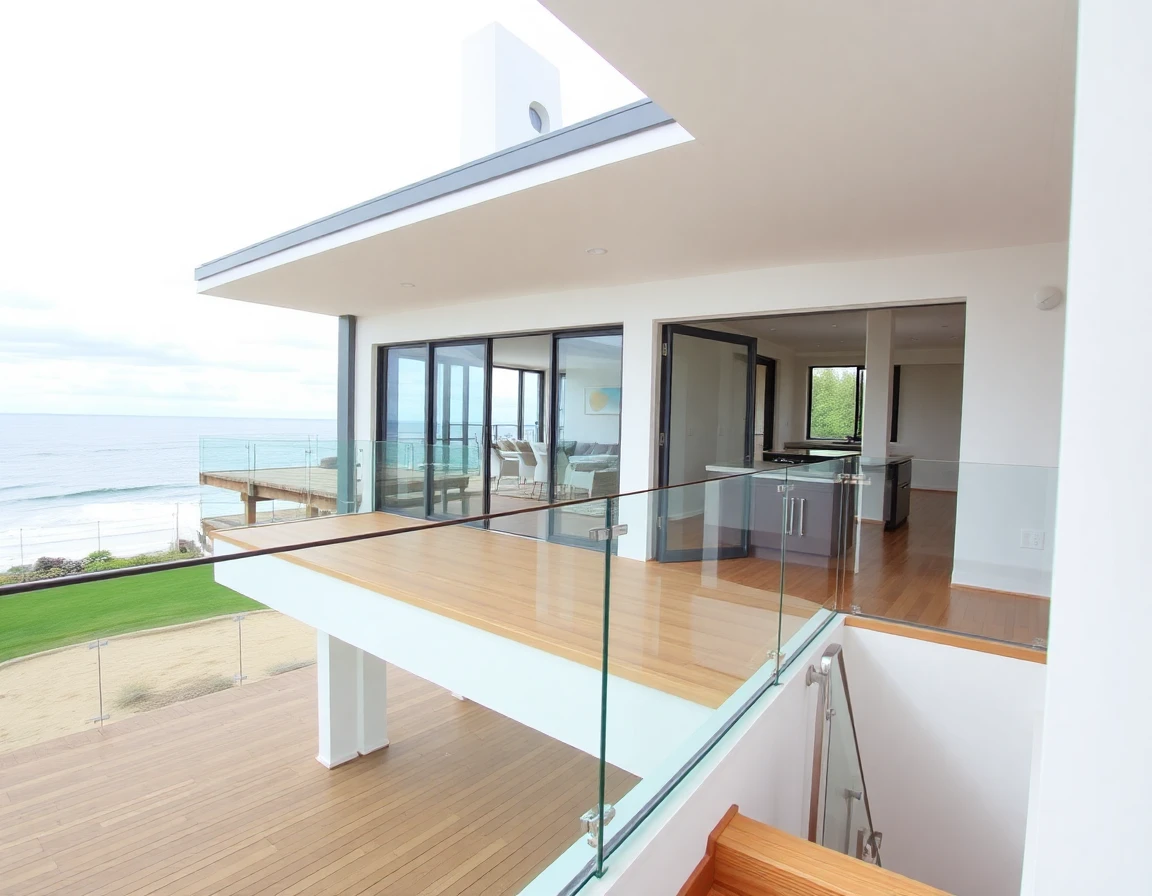

- ▸Residential balcony and deck guardrails

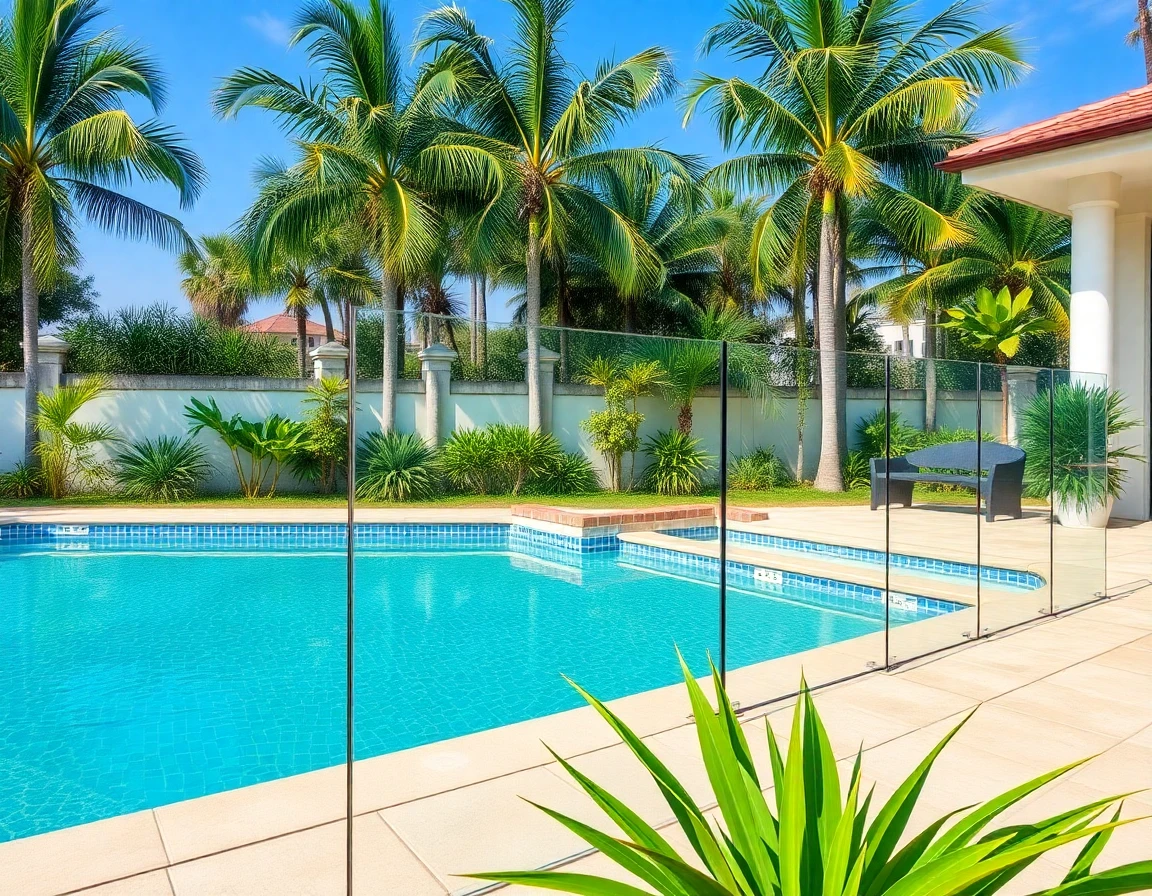

- ▸Swimming pool and spa surround fencing

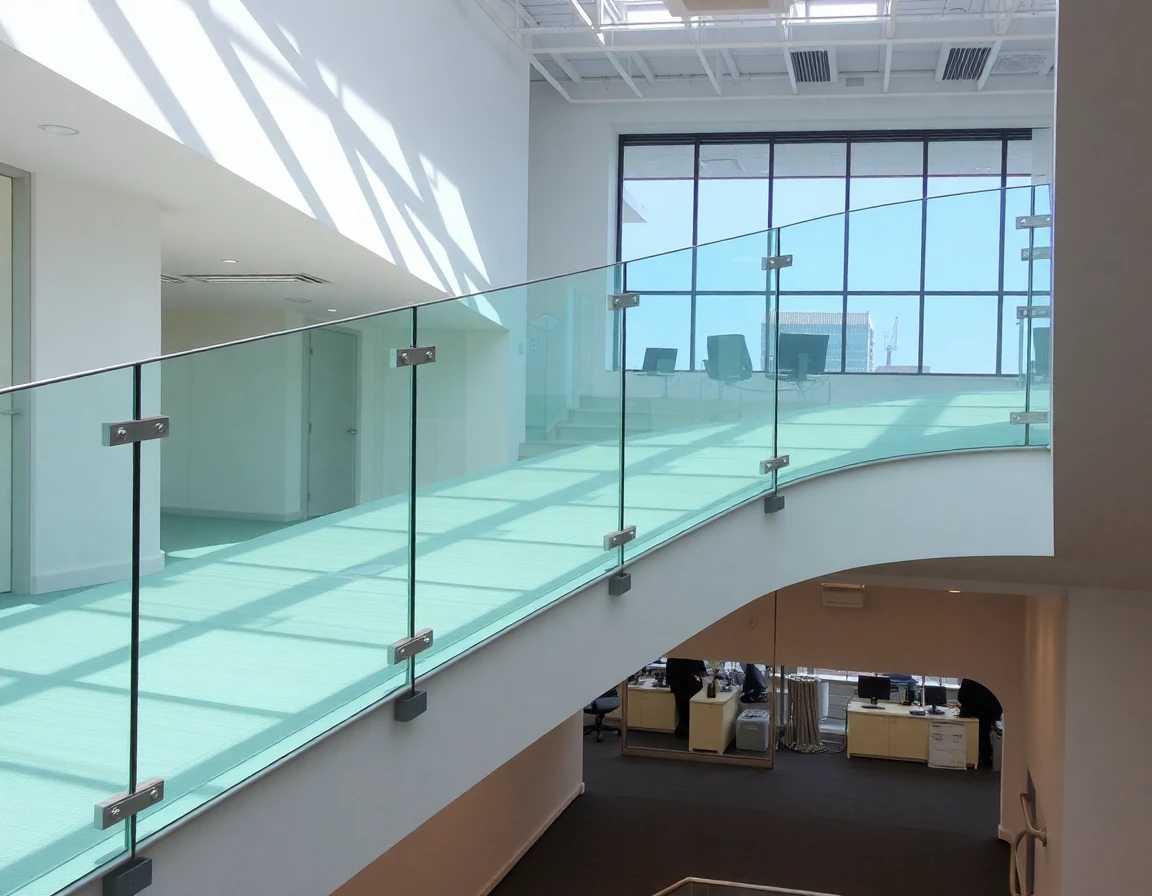

- ▸Commercial mezzanine and walkway guardrails
- ▸Terrace and rooftop edge protection
- ▸Interior office partitioning and room dividers
Ready to specify?
Send drawings, dimensions, material preference and destination country for quotation review.
Request a Quote
